Multi Function LED Basketball Scoreboard High Visibility 1300mm X 2000mm X 100mm

Jiaxing Linger Electronic Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

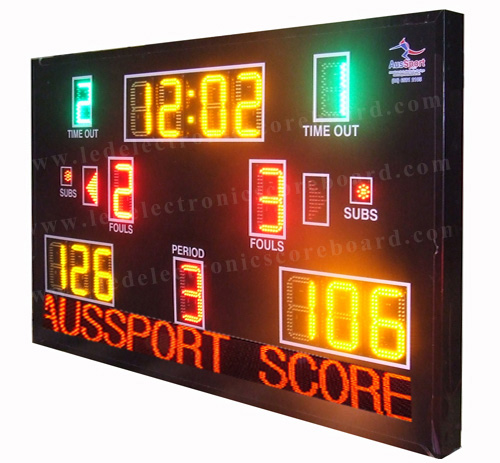

Multi Function LED Basketball Scoreboard High Visibility 1300mm X 2000mm X 100mm

Brand Name : LG-Linger

Model Number : LG-LBS-15D200RGY- VMS

Certification : CE / ROHS

Place of Origin : Jiaxing ,Zhejiang ,China (Mainland)

MOQ : 1 Unit

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 100Units/ Per Month

Delivery Time : 7 - 10 Days

Packaging Details : 1unit in 1 Carton / Wooden Case

LED Color : Red / Yellow / Green

Digit Size : 8'' 200mm

Frame Material : Iron / Steel / Aluminum

Opreation Type : PVC Buttons Box - Wireless Type

Scoreboard Dimension : 1300mm x 2000mm x 100mm

UV Protection : Front Glass Board

Usage : Indoor and Outdoor

Input Voltage : 110V ~ 250V

Contact Now

220V / 110V AC Wireless Buttons Controller Electronic Led Scoreboard for Basketball

PRODUCT INFORMATION
Model No. : LG-LBS-15D200RGY- VMS
Dight Height and Color : 8'' 200mm Height in Red / Green / Yellow Color
Display Dimension : 4.3 ft x 6.6 ft ( 1300mm x 2000mm x 100mm )
Operation Type : PVC Buttons Type Controller Box / Windows Software (Wireless)
View Distance : 1m ~ 300m
Application : Basketball Game
Frame Color : Black / other Colors
Printed Letters Sticker in White Color
Brightness : > 5000mcd / sqm
Waterproof : Outdoor Type

Basketball Scoreboard Descripition

Function : Display Basketball Game Score and Information.

Specification​ :

1) Use of the environment: Indoor or Outdoor

2) Brightness: High Level Brightness

​ 3) Height of Characte: 8'' 200mm

4) Display Led Color : Red / Green / Yellow (Any other kind is Option)

5) Frame Color : Black Color (Any other kind is Option)

​Overall Structure :

​ 1) Display usage: 15 Pieces digits ,8 inch in three different colors

2) Frame : Iron / Steel

3) Faceplate​ : Display window cover glass​ board and UV Protection

4) Drainage Outlet at the bottom of the Frame

5) Fans install inside of scoreboard

Technical Norms​ :

1) Power Supply : 110V ~ 240V

2) Operation Circumstance: -30℃ ~ 65℃ ,0% ~ 95% relative humidity

Operation Type :

1) PVC Buttons Controller Box / Windows Software

2) Hard - wire / Wireless Type

3) Operation Distance : Max 1000Meters.

4) Controller box works by 110V ~ 240V Power (Battery is an Option)

Life Time of Leds : 100000 Hours

Installation : Hanging / Mounting / Custoized Design

Delivery Time : 7days ~ 12days

Warranty : 2 Years

Package Dimension : 1370mm x 2070mm x 160mm (Carton)

Screen Dimension : 4.3' x 6.6' x 4''

Function

Game Time :

1) 4-Digits to Display : MM : SS

2) Countdown / Count Up / Day Time is Option

3) Set time by Controller with Buttons for MIN +1 -1 , SEC +1 -1

Team Score : Home and Guest Scores : 3digits display number from 000 - 999

Time Out : 1 Digit display number 0 - 9

Fouls : 1 Digit display number 0 - 9

Period : 1 Digit display number 1 - 4

Subs / Arrows : On / Off

Siren : With Siren ,when time reach to 00 : 00 ,it will sound for 5''

Led Brightness : Option

SCOREBOARD FUNCTION IS CUSTOMIZED ,ANY FUNCTION IS WELCOME !

Features

 1. Linger devote to design the different sports of customized scoreboard, any kind of digit height and digit           color is made for different scoreboard.
 2. Scoreboard controller type can be with cable or wireless type.
 3. The brightness is enough for outside in day and night.
 4. Scoreboard with Iron waterproof cabinet and prevent the impact.
 5. The front face is acrylic glass board to protect digits and the acrylic glass board is UV Protection type.

About Sample

 1. Existing samples can be provided but not for free of charge.  2. Customized size and layout design are welcome.
 3. Sample will be finished about one week.
 4. Photos for sample will be sent to confirm befor the shippment.
 5. Good after-sale service - any quality problem , we will do our best to help solve the problem.

6. Large size sample will shipped by air or sea . Sample with small size and light will send by express.

Packing and Logistics

 1. Where do you load the goods?
 We offer shipment by sea or by air as requested by the buyer.  The sea port we are used : Shanghai Sea port  The airport we are used : Shanghai Airport
 2. What is the lead time ?
 Usually, the lead time is 7-10 days.  3. Which logistics company do you cooperate with?  Our company cooperates with COSCO, APL, CMA, CSAV, K-LINE, MSC and etc. For courier, it’s up to   buyer’s option. We will give suggestion according to the time table of the steamers and their services.
